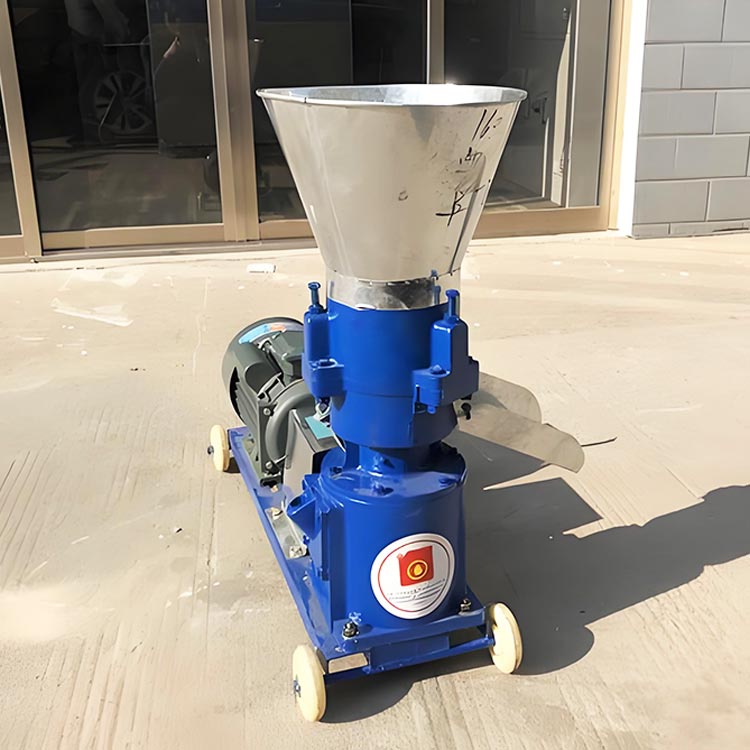

Chicken Feed Pellet Machine
The Chicken Feed Pellet Machine is a pellet forming equipment whose core competitive strengths lie in cost efficiency, flexibility and user-friendliness. It delivers irreplaceable advantages for small-to-medium scale production, startup operations, laboratory research trials, and processing a wide variety of raw materials. This machine features controllable costs and straightforward operation, and meets pelleting requirements for multiple feedstock types.
Equipment Features & Advantages
Compact structure with fewer components, small floor footprint, easy installation and relocation.
Low operational learning curve and simple commissioning; no professional expertise required for daily maintenance.
Pellets are extruded via cooperation between press rollers and flat dies, ensuring stable pelleting process and high pellet forming rate.
Hourly output options range from 50 kg to 2000 kg to meet diverse production demands.
Low equipment purchase cost and operating power consumption, ideal for users with small and medium production capacity needs.
Strong adaptability to raw materials; capable of processing feedstock with varying moisture contents and particle sizes, and less prone to blockages.
Flexible pellet size adjustment: pellets of different diameters can be produced simply by swapping dies.
Low failure rate and minimal maintenance costs; spare parts are readily available and easy to replace.
Applications
Medium and small livestock & poultry farms
Produce compound feed pellets for chickens, ducks, pigs, cattle, sheep and other livestock and poultry.
01
Aquaculture
Manufacture sinking feed pellets for aquatic products such as fish and shrimp.
02
Special breeding industry
Process feed for special economic animals including rabbits, pigeons and quails.
03
Pet feed production
Small-batch manufacturing of pet food like dog feed and cat feed pellets.
04
What Raw Materials Can the Chicken Feed Pellet Machine Process?
The Chicken Feed Pellet Machine is equipped with interchangeable flat dies featuring hole sizes ranging from 2.5 mm to 10 mm. The density of finished pellets can reach 1.1×10³ kg/m³. On small-sized models, pellet length can be freely adjusted by modifying the cutter height, stably maintained at 1 to 5 times the pellet diameter, fully complying with feed pellet production standards.
This machine supports an extensive range of raw materials and can smoothly pelletize all kinds of powdered breeding feedstock and high-fiber materials. Its specific applicable scenarios are categorized as follows:
Pelleting of complete feed for livestock and poultry
It caters to rural chicken breeders and medium & small layer/broiler farms, and also processes feed for ducks, geese, pigs, cattle, sheep, rabbits, pigeons, fish, shrimp and other aquatic species. Four major categories of feed ingredients can be pelletized after being pre-ground into fine powder; optimal molding performance is achieved when moisture content is controlled between 12% and 16%.
Pelleting of low-adhesion high-fiber materials
It extrudes and molds hard-to-process high-fiber feedstock with poor binding properties that fail to form pellets on ordinary machines, including wood shavings, rice husks, cotton stalks, cottonseed hulls, weeds, corn cobs, peanut shells, sunflower seed husks, various crop straws, agricultural and forestry residues, and light industrial waste.
Multi-functional low-temperature organic fertilizer pelleting
The low-temperature extrusion process preserves microbial activity. The machine can process biological bacterial fertilizer, organic fertilizer, fermented manure and compound fertilizer powder, enabling resource recycling of breeding waste via pelleting.
Supplementary Operation Precautions
1.Whole grains, intact straw stalks and fresh damp green forage cannot be fed into the machine directly. All raw materials must be crushed and sun-dried to reach the standard moisture content. Stones, metal fragments and hard impurities are strictly prohibited from entering the feeding port to prevent damage to flat dies and press rollers.
2.Pure high-fiber materials cannot form pellets independently. They need to be blended with starch-containing grains such as corn and wheat bran at a proper ratio to ensure intact pellets that resist pulverization.
3.Swap flat dies with corresponding hole sizes according to different breeding stages: select 2.5–3 mm dies for chicks, 3–4 mm dies for pullets and laying hens, and 6–10 mm dies for high-fiber feed for cattle, sheep and rabbits.
